General specifications

Other Features

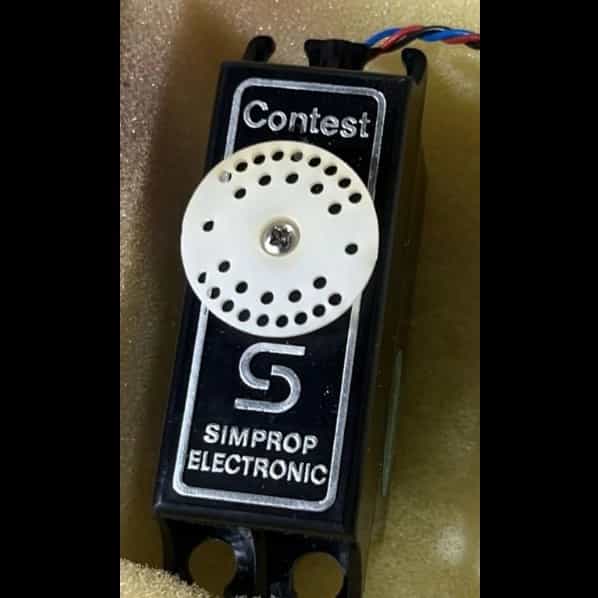

This servo (CONTEST-Servo) is designed based on the experiences of the past years and after extensive tests in connection with the SIMPROP-CONTEST system.

Technical specifications of the servo (CONTEST-SERVO, order number 03111): 1. ** Current consumption at rest **: - 6 mA / 4.8 V 2. **adjustment accuracy**: - better than 0.5% 3. **adjustment force at start**: - 2200 pounds per centimeter 4. **maintenance force**: - More than 5000 pounds per centimeter 5. **Departure time**: - 0.45 seconds / 100 degrees 6. **Dimensions without flange**: - Length: 53 mm - Width: 23 mm - Height: 37 mm 7. **Weight**: - About 60 grams ### General description: This servo (CONTEST-Servo) is designed based on the experiences of the past years and after extensive tests in connection with the SIMPROP-CONTEST system. Months of flight testing has shown that there is no better servo out there, even at the higher price. ### outstanding properties: - Body and flanges are almost indestructible. - The gears are designed based on the latest findings in the production of plastic gears.
