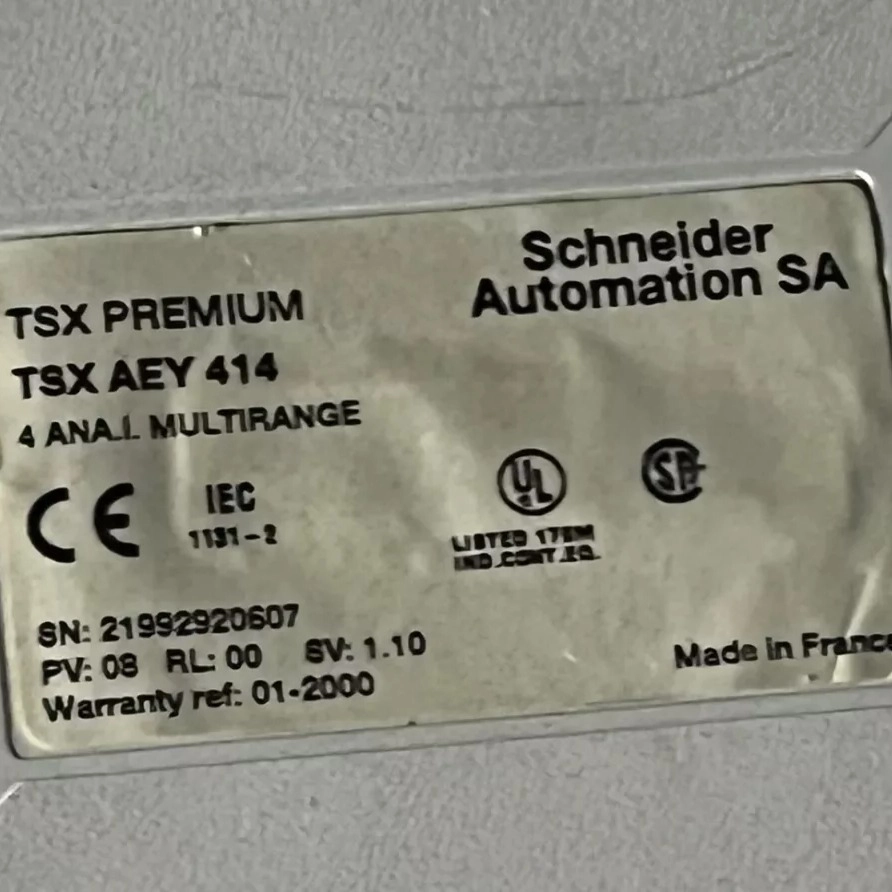

TSX AEY 414 module from Schneider Electric The TSX AEY 414 module from Schneider Electric's TSX Premium series is an analog input module used to process and transmit analog data in industrial control systems. This module has the ability to support all types of analog inputs and has the following key features: Key Features: 1. Number of channels: • This module has 4 isolated analog input channels that allow users to measure a variety of signals. 2. Input signal amplitudes: • High voltage: ±10V, 0-10V, ±5V, 0-5V. • Current: 0-20 mA and 4-20 mA. • Other ranges: -13 to +63 mV, temperature (0-400 ohm and 0-3850 ohm), and thermocouples (B, E, J, K, N, R, S, T, U). 3. Resolution: • This module uses an analog-to-digital converter with 16-bit resolution, which provides high accuracy in measuring signals. 4. Processing time: • Signal processing time for each channel is approximately 550 milliseconds. 5. Protective and monitoring features: • Ability to monitor module performance including range testing, terminal presence, and sensor monitoring. • Isolation of the channels from each other and from the ground with an isolation level of 1780Vrms. 6. Electrical connections: • Connection through screw terminal blocks. Applications: The TSX AEY 414 module is used in various industries such as industrial automation, production lines, and monitoring and control systems due to its multiple capabilities. Support for a variety of temperature inputs and analog signals makes it a good choice for applications that require accurate data processing.
