📌 MPS‑71E‑NGHX pressure sensor

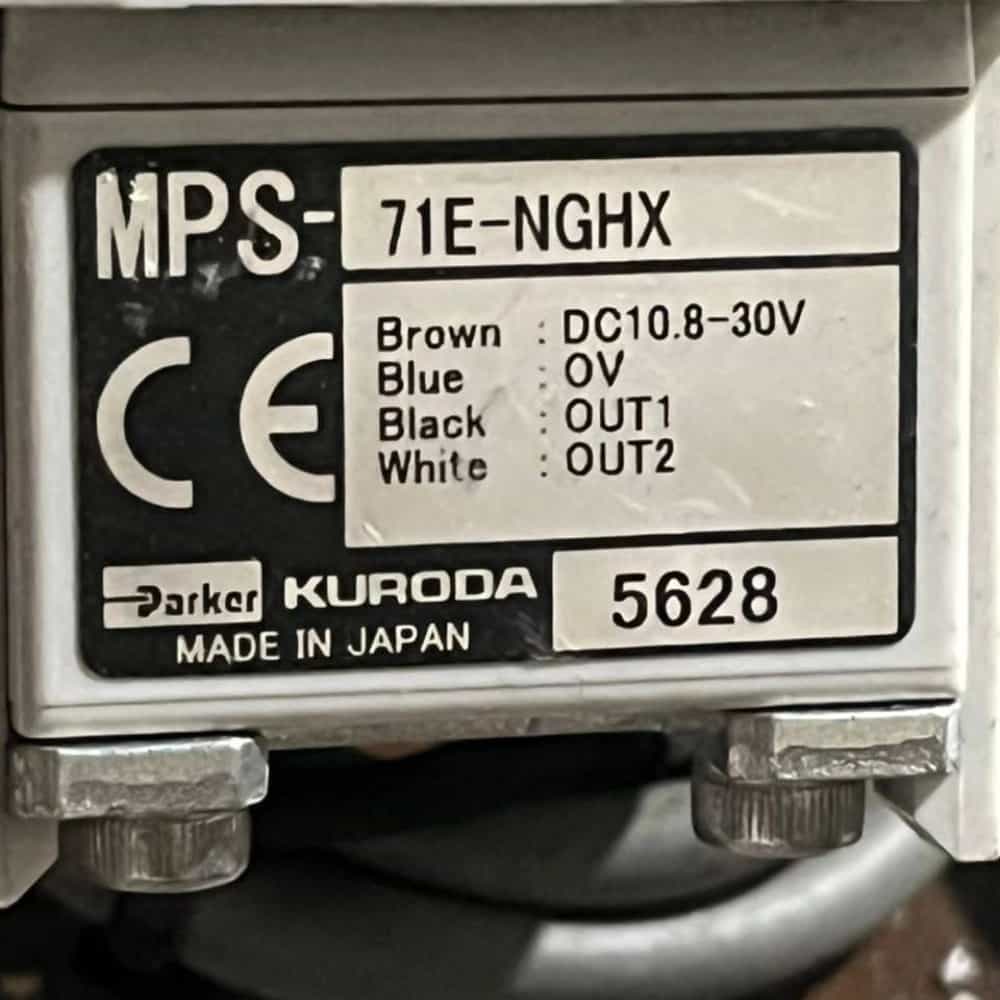

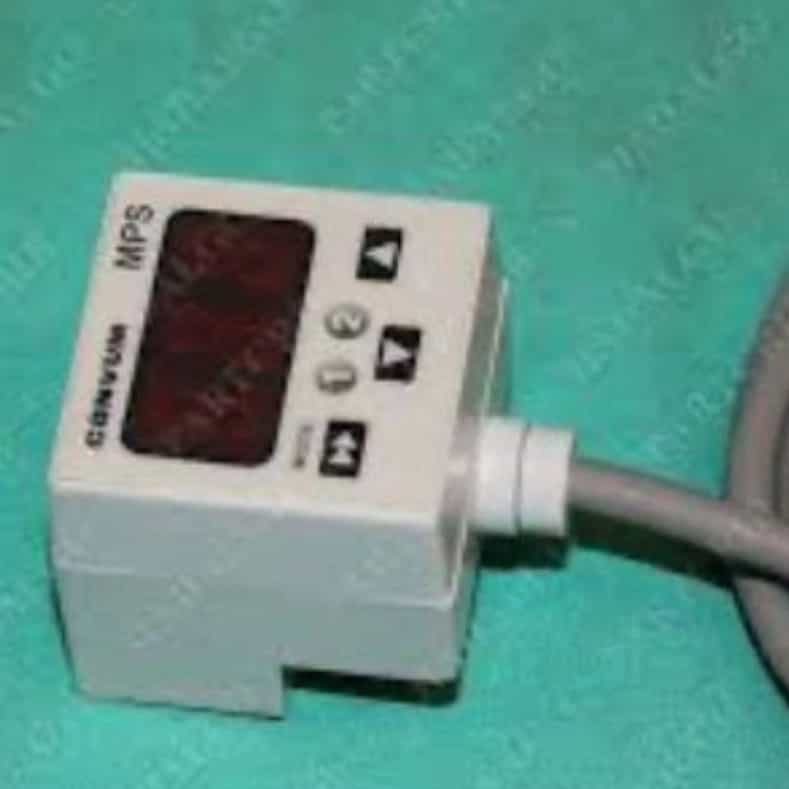

📌 MPS‑71e‑NGHX Pressure Sensor The acronym for MPS is the abbreviation for Multi‑Pressure Sensor + Display. The model is designed as a digital pressure display with sensors and sensor outputs and is produced by the Convum brand (Kuroda Parker Subspicor) in Japan. ⸻ 🧠 wiring and functioning • Brown (+V): DC feed from 10.8 to 30V • Blue (0V): Land connection • Black (OUT1): First Switch Output (NPN or PNP Depending on Part) with power of up to 30V and current up to ~ 100-125 MA  • White (OUT2): Output of Independent Second Switch • Pink wireless - because this model only has two independent switch outputs   ⸻ 🔍 Technical features • Occupational temperature: about 0 to 50 ° C (32-22 ° F); Humidity 35-85 % RH • Rapid reaction: Response time less than 1 millisecond • Excellent accuracy: Repeat ± 0.2 % FS, heat error ≤1 % in temperature change ± 25 ° C • Structural protection: IP40 grade, 10-55Hz vibration resistance and 10G shock • Three -digit LED display for pressure and red/green LED markers for output status • Internal Planning: Includes Online Setting on/off output, selecting Hysteeresis or Window Comparator, Setup Units (KPA/BAR/INHG), Auto Teaching feature and Zero Reset ⸻ 🛠️ Applications and Environment of Use • Pressure or vacuum measurement in pneumatic and vacuum systems • Supervision and control of pressure on production lines, semiconductor industry, HVAC equipment testing and medical items • Easy connectivity with PLC or storage control system using two standalone outputs • Suitable for installing a panel or on DIN rails with standard MPS‑7 series brackets ⸻ 📊 Summary The value of the value / description MPS‑71e‑NGHX Model (Parker/Convum, Japan) Feeding DC 10.8 to 30 V Outputs Two Switch Outputs (OUT1 and OUT2), PNP or NPN Type Output current up to 100–125 MA, 30V Reply speed ≤ 2 ms Repeat accuracy ± 0.2 %, heat ≤1 % Three -digit LED display with output status indicator Hysteeresis or Window Mode switching modes Other Zero Reset Features, Auto Teach, Unit Selection, Prevent Chattering IP40 protection and structure, vibration resistant and shock Installation and interface of the M8 connector M8 - Ready Cable or Panel Bracket
