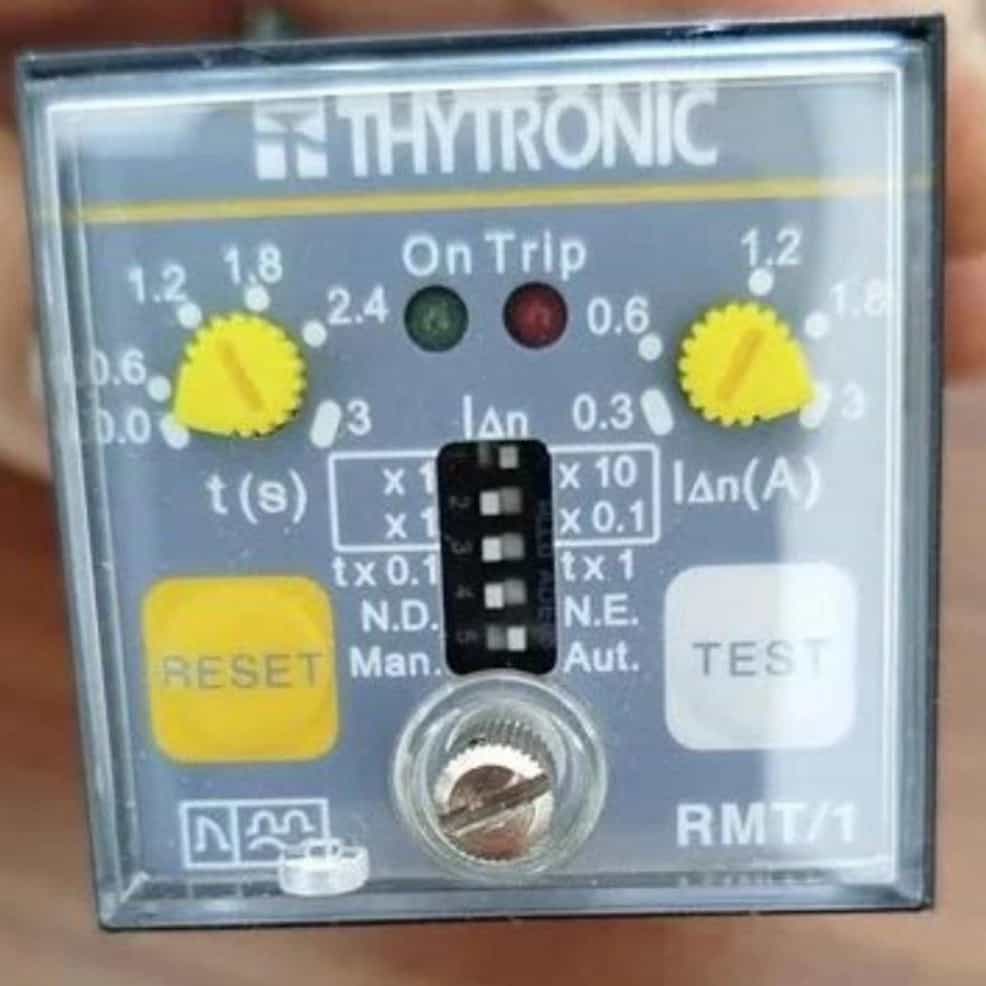

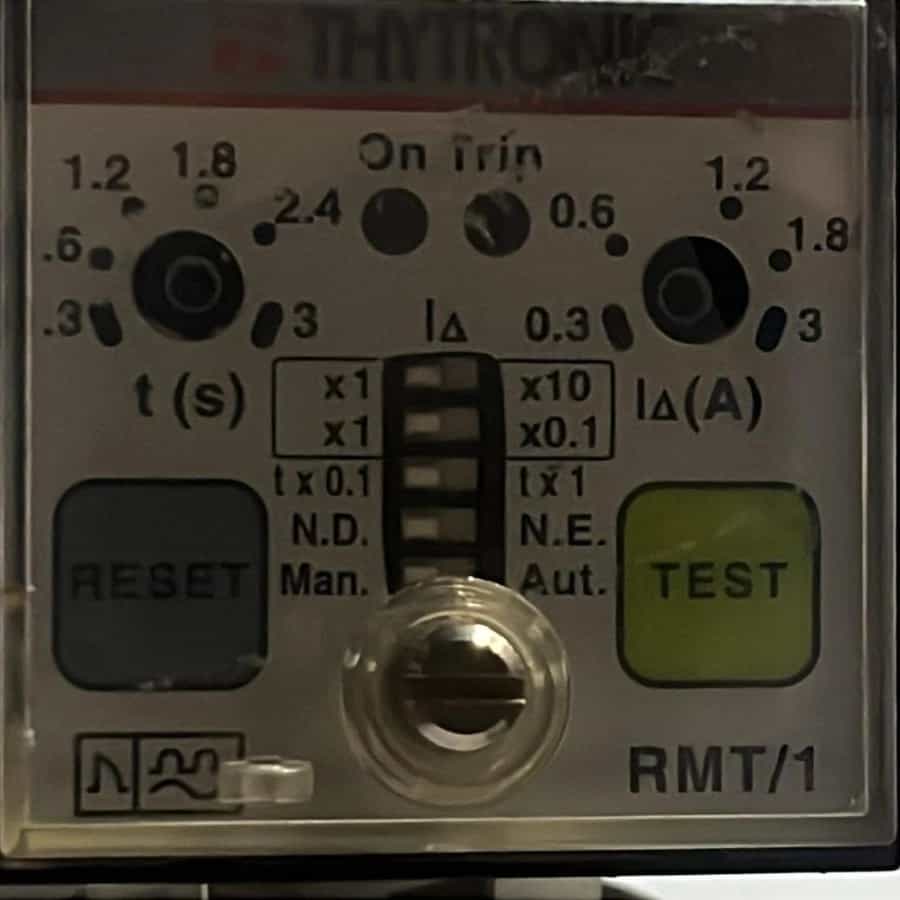

RMT/1 Thyronic Model Relay

RMT/1 Thyronic relay is a protective relay for detecting Earth leakage, which is especially used in industrial electrical systems and power distribution networks. With precision design and adjustable features, this relay provides high safety and efficiency in electrical systems.

Technical Specifications of RMT/1

• Type of relay: Land leakage relay with defined time (definite time earth leakage relay)

• Leakage Current Setting (IDN): Adjustable in three different intervals using sliding microswitchs

• Regulatory Delay Time (T): Adjustable in two intervals up to 2 seconds

• Transformer Type of Current: Internal Circus Transformer

• Auxiliary Supply: In the specified range in Ditashit

• Final Trip Relay: An open -up contact and an open contact (NO) that can usually be adjusted or enabled

• Reset Fashion: Adjustable manually or automatically

• Status display: Green LED lights to indicate normal status and red LED lights to indicate error status

• Monitoring of the measurement circuit: with a orbits for continuous monitoring of the Circuit Circuit Circuit

• Installation: Installed on DIN rails with standard dimensions

Applications

RMT/1 relay is designed to protect electrical systems against ground leakage. This relay is particularly used in the following:

• Protection of sensitive equipment: Protecting electrical equipment against damage caused by ground leakage

• Power Distribution Systems: Use in power distribution networks to increase safety

• Industrial applications: Used in various industries to protect electrical systems

Benefits

• Flexible Settings: Ability to accurately adjust leakage and delay time to coordinate with other protective devices

• Easy installation: Suitable design for installation on DIN rails with standard dimensions

• High Safety: Has advanced protection features to increase the safety of electrical systems
